3M / 20-1"X60YDS (7000149351)

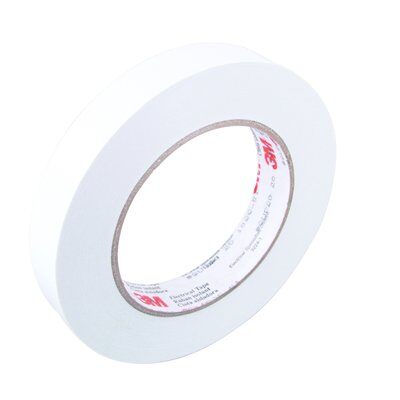

3M™ Epoxy Film Electrical Tape Super 20-1"X60YDS, White, Acrylic Adhesive, 1 in x 60 yd (25,40 mm x 55 m), 36/case
3M™ Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).
3M™ Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).
Price Per Each
36-72
$135.69*
$135.69*
108-144
$131.81*
$131.81*
180-216
$128.15*
$128.15*
252-288
$124.68*
$124.68*
324+
$121.40*
$121.40*
3M Product Number: 20-1"X60YDS
3M ID Number: 7000149351 3M UPC Number: 51138691769 3M Legacy Product Number: 80610945059
Additional Product Information: 3M™ Tape Super 20 has an acrylic, pressure sensitive adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. Highly conformable tape is tough and provides resistant to solder damage. It is suitable for use in wrapping relays, coils, transformers, bobbin wound sub fractional horsepower shaded pole motors and stick wound coils. UL Listed and RoHS 2011/65/EU Compliant.
