3M / 476XL (7000048735)

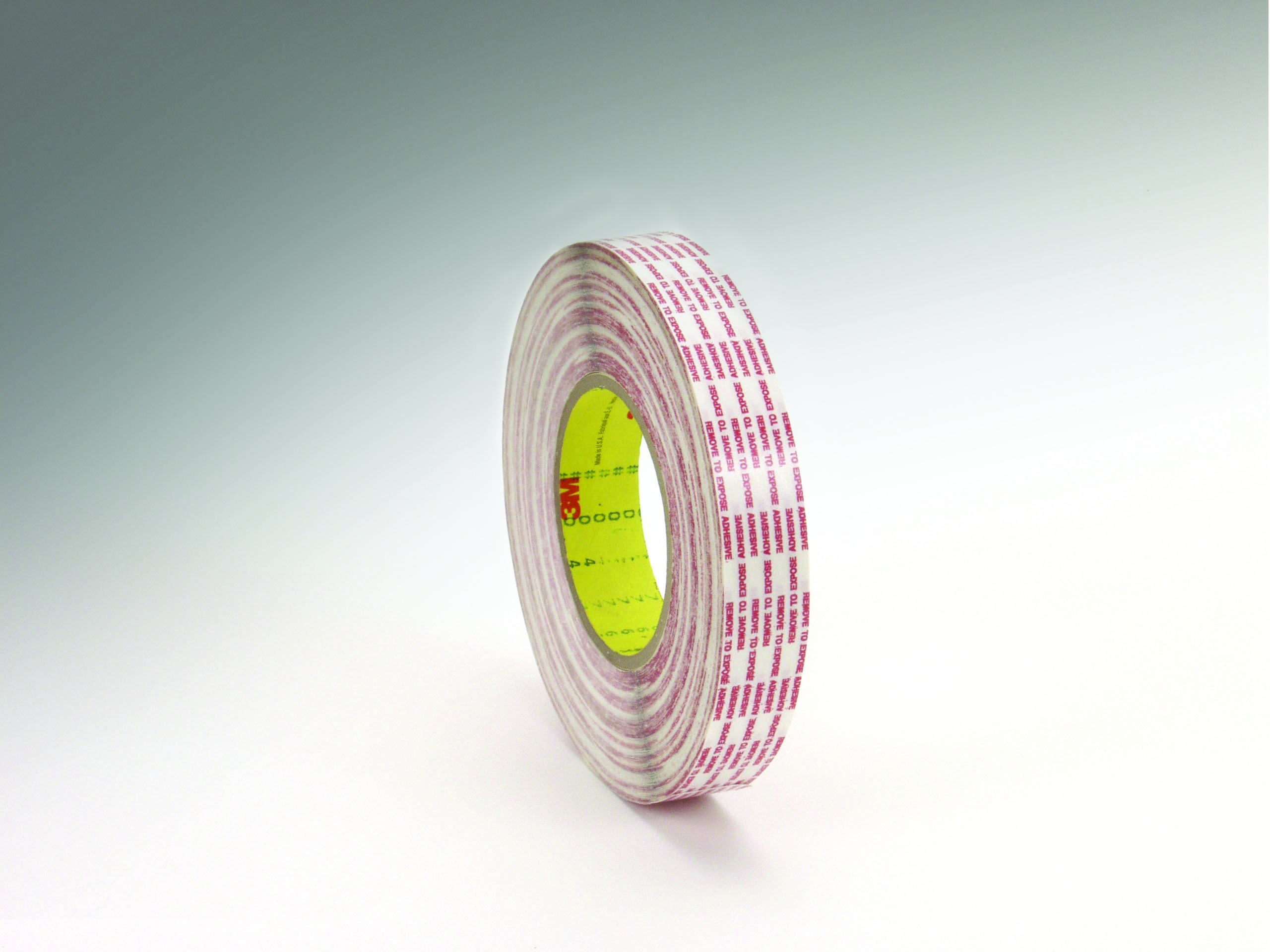

3M™ Double Coated Tape Extended Liner 476XL, Translucent, 1/2 in x 360 yd, 6 mil, 12 Roll/Case
3M™ Double Coated Tape Extended Liner 476XL is a general purpose tape with a pressure sensitive adhesive mounted on a removable extended paper liner for easy liner starting and removal. It is ideal for a variety of closure applications, point-of-purchase displays and indirect food contact applications.

Price Per Roll


3M Product Number: 476XL

3M ID Number: 7000048735    3M UPC Number: 21200315077    3M Legacy Product Number: 70006215209

Additional Product Information:

Easy Liner Starting and Removal Helps Keep Jobs Running Smoothly
Our 3M™ Double Coated Tapes Extended Liner 476XL is constructed with either a polypropylene film or tissue carrier and densified kraft white paper liner that extends beyond the width of the rubber adhesive to provide easy liner starting and removal. The products provide a dry edge or finger lift edge on each side of the tape for easy liner removal.

Recommended Applications

  • Closure of overnight or express boxes, tubes and envelopes
  • Point-of-purchase displays
  • Automated tape application equipment
  • Mounting promotional items
  • Core starting
  • Heavy duty sealing

Reliable Sealing on a Variety of Substrates
Our 3M™ Double Coated Tape Extended Liner 476XL portfolio offers two rubber adhesive solutions for bonding to many shipping boxes and tubes as well as permanent paper to paper bonding:

  • 3M™ Adhesive 760 Synthetic Rubber provides excellent quick stick / initial adhesion and is used on many coated, uncoated and synthetic paper applications. Products featuring Adhesive 760 include: 3M™ Double Coated Extended Liner Tape 476XL
  • 3M™ Adhesive 770 Rubber Resin offers high initial adhesion to a wide variety of materials. Products featuring Adhesive 770 include: 3M™ Double Coated Extended Liner Tape 9925XL

Understanding Double Coated Tapes
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts, and hobby.

Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Product Resources

Tech Data Sheet
